EBOX3 - Stomp EBOX Electric Pit Bike - 72V - ELECTRIC PIT BIKE KIT BIKE
This is not a complete bike - you will need to source your own motor, controller and throttle --- EBOX - Electric Bike Off-road Motocross now in 2 options Supermoto 72v Motocross 72v This kit requires purchase of a separate motor, controller, and throttle kit We recommend the Electro and...
This is not a complete bike - you will need to source your own motor, controller and throttle
---
EBOX - Electric Bike Off-road Motocross now in 2 options
Supermoto 72v
Motocross 72v
This kit requires purchase of a separate motor, controller, and throttle kit
We recommend the Electro and Co ETM Upgrade kit for this bike

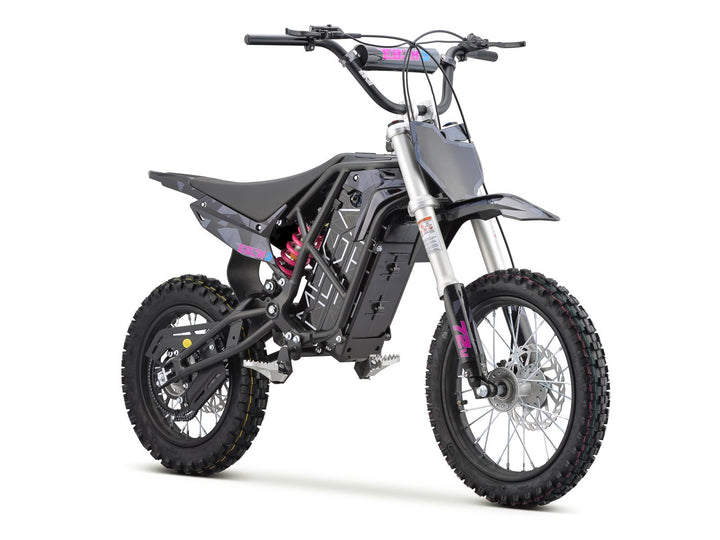

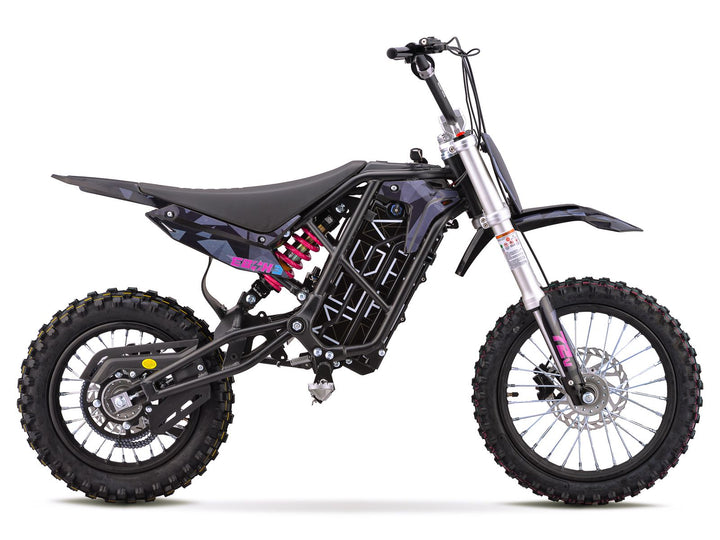

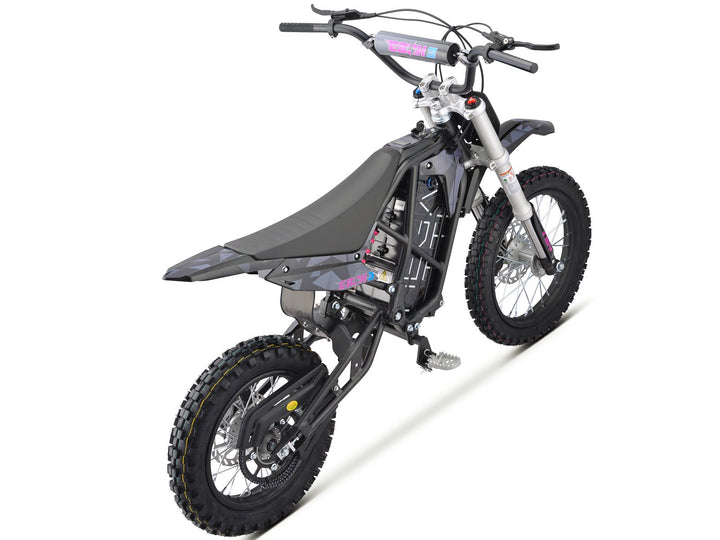

EBOX 3
The EBOX3 MX features our new improved geometry, with longer stiffer forks and slackened head tube angle, high rise 6061 T6 bars and dropper footpeg bar, all aimed at providing that big-bike feel, but delivered in a mini package. For reliably whilst hitting those bigger jumps, we have g
SPECS
| Frame type | V2 Double Cradle |
|---|---|
| Front wheel size | 14" |
| Rear wheel size | 12" |
| Front brake | Hydraulic Disc |
| Front disc | 180mm |
| Rear brake | Hydraulic Disc |
| Rear disc | 180mm |
| Front tyre | 14" x 2.27" |
| Rear tyre | 12" x 3" |
| Chain | 219H 120L |
| Gearing | Front 10T, Rear 70T |
| Max load | 85kg |
| Fork type | USD |
| Shock type | DNM 270MM Shock 650lb spring |
| Handlebar | EBOX3 Race High Rise 6061 T6 |
| Battery | 72V 20Ah Lithium |
| Charger | AC 100-240V, Output: 84V, 6A |
| Graphic | EBOX3 Megalith graphics |
| Other Feature | EBOX dropper footpeg bar 46mm |
Tech
| Charge time | 4-5 hours |
|---|---|
| Battery | Removable high capacity 72V 20Ah (21700) 180 amp peak battery |
| External adjustability | Top speed, Acceleration |
| Frame construction | V2 race inspired geometry, High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension |
| Rear Shock Construction | DNM MT-AR race shock with adjustable preload and rebound damping, Nitrogen filled, oil air. |
| Wheelbase | 945mm |
| Ground clearance | 275mm |
| Seat height | 66cm |
| Weight | 42.5kg |
one all-in with a custom designed adjustable DNM mono-shock, featuring multiple preload and rebound settings and aesthetically finished with a 1-off pink spring you won’t find anywhere else. The chassis upgrades push the EBOX into semi pro-chassis territory out-of-the-crate.
To make sure your new whip is supplied with enough juice to match the unrivalled chassis performance, we have included a 72v 20AH battery (peak 180 amp) with 21700 Cells and a fast charger. You simply need to select your preferred motor / controller / throttle to complete the build.
All-in, the EBOX3 is the new weapon of choice for those seeking the ultimate performance minibike build.
Click Here for Warranty Document
Click Here for Troubleshooting Guide
| Tire Type |
Supermoto Street Tires, Motocross Dirt Tires |
|---|
