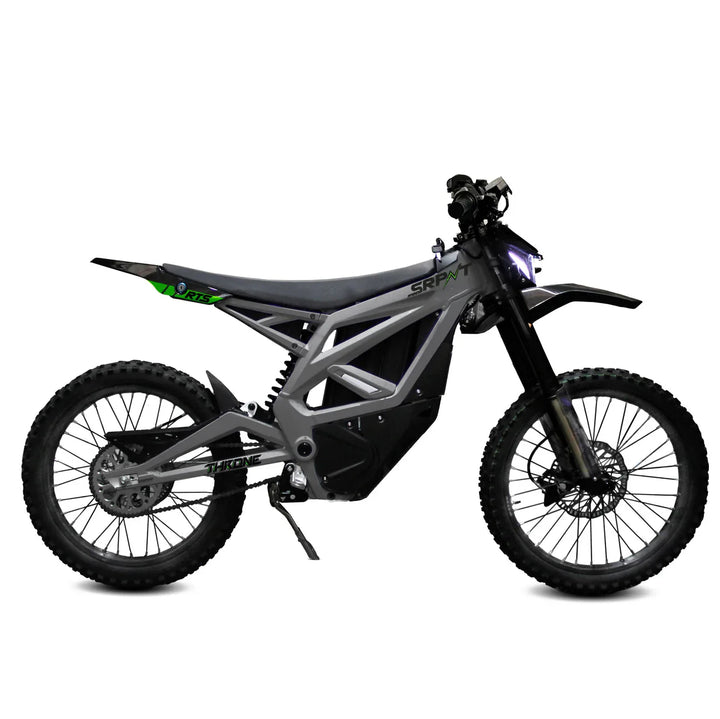

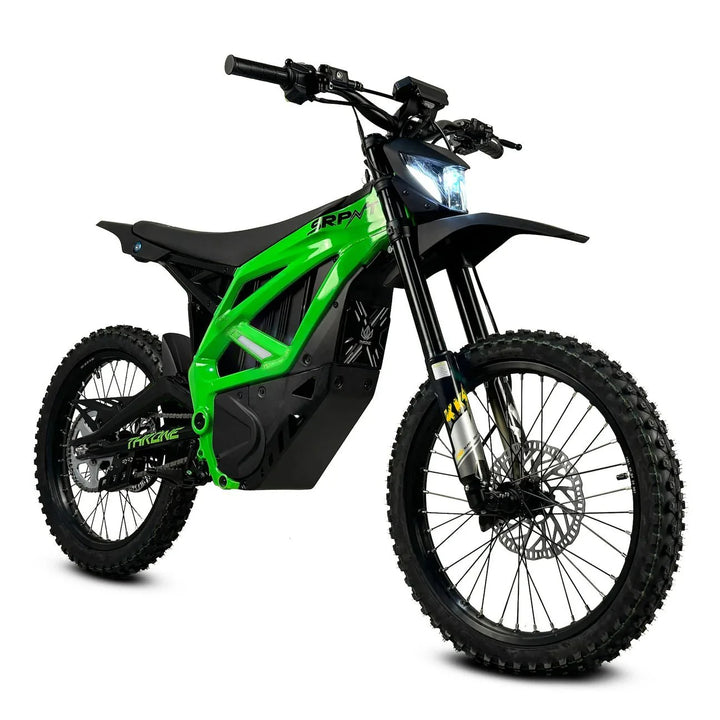

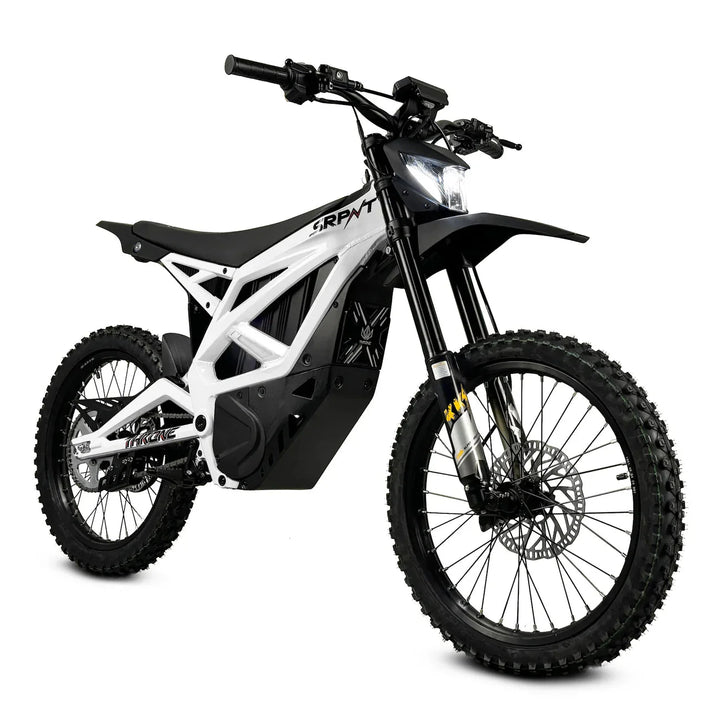

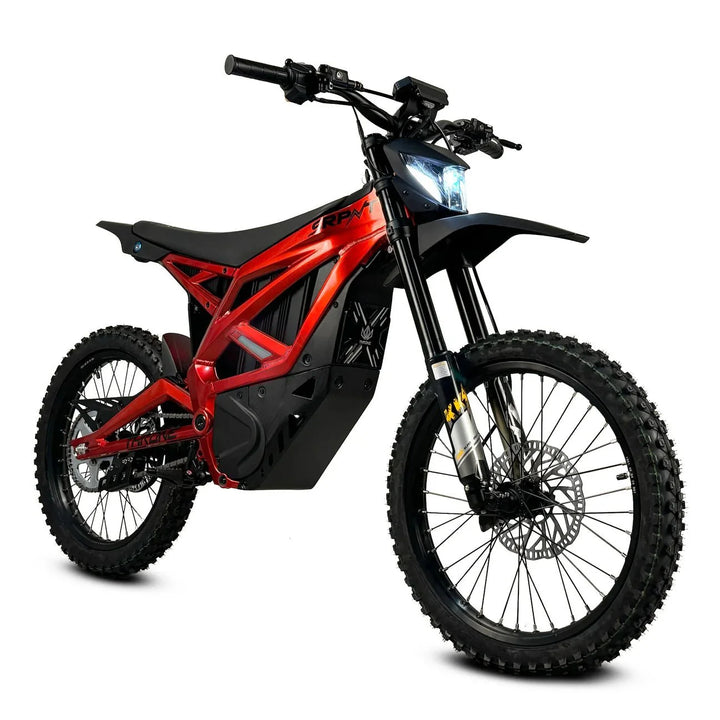

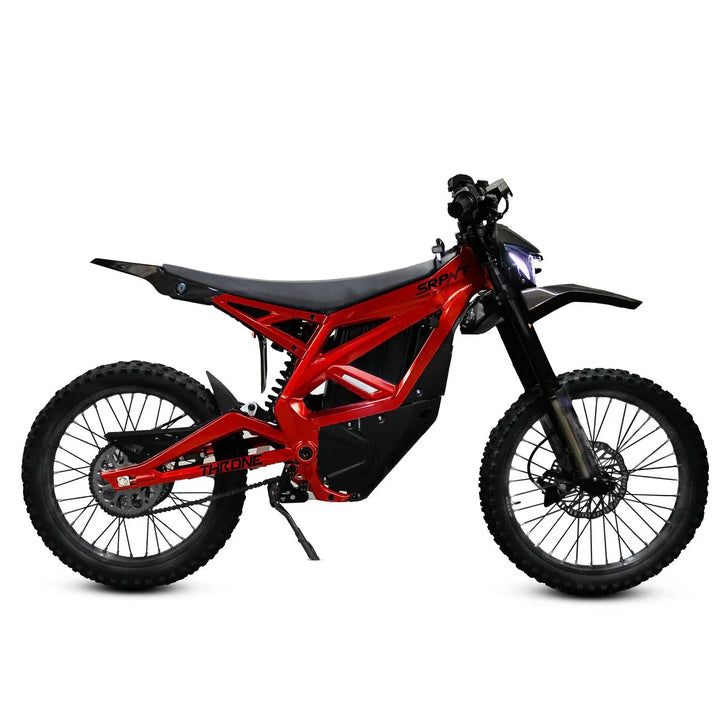

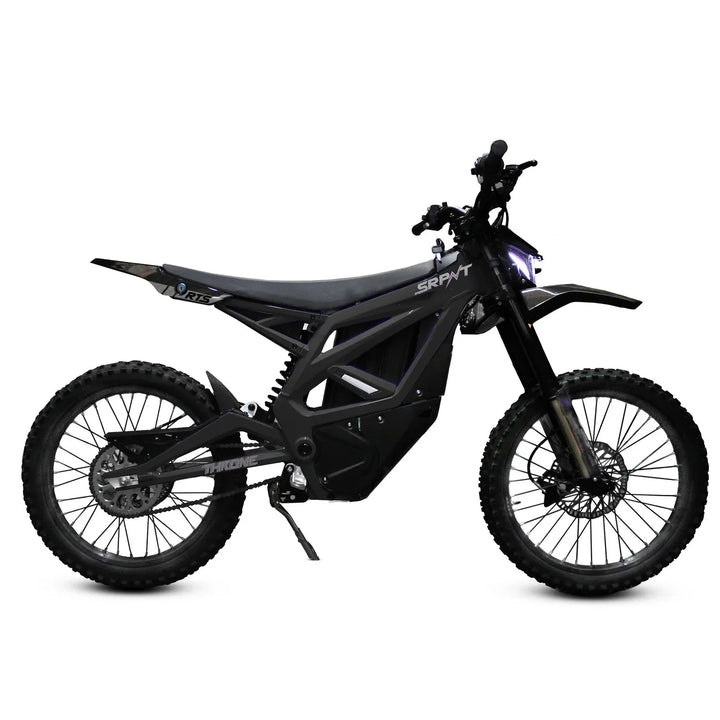

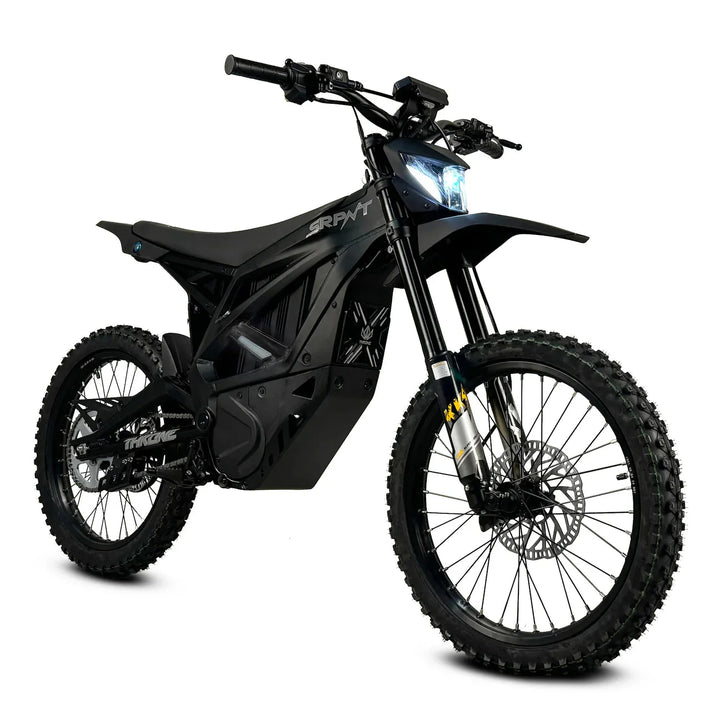

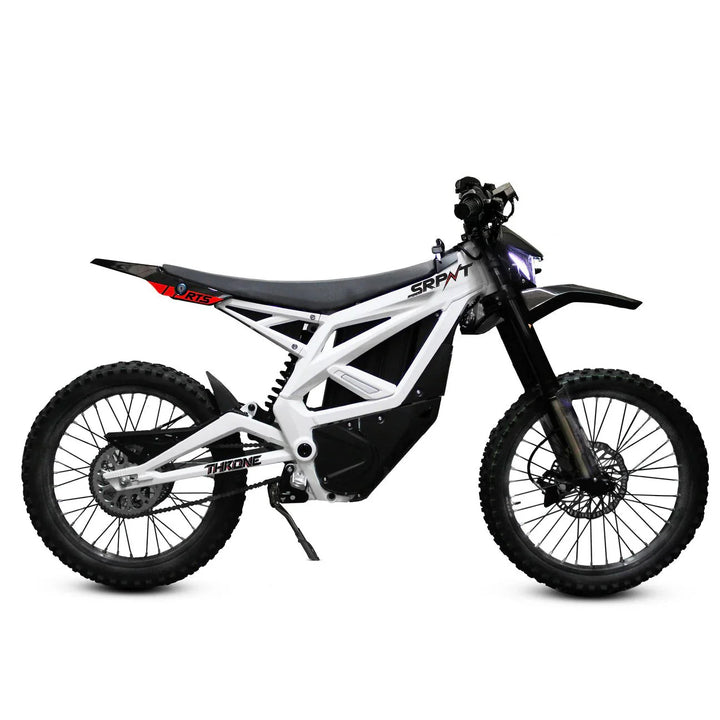

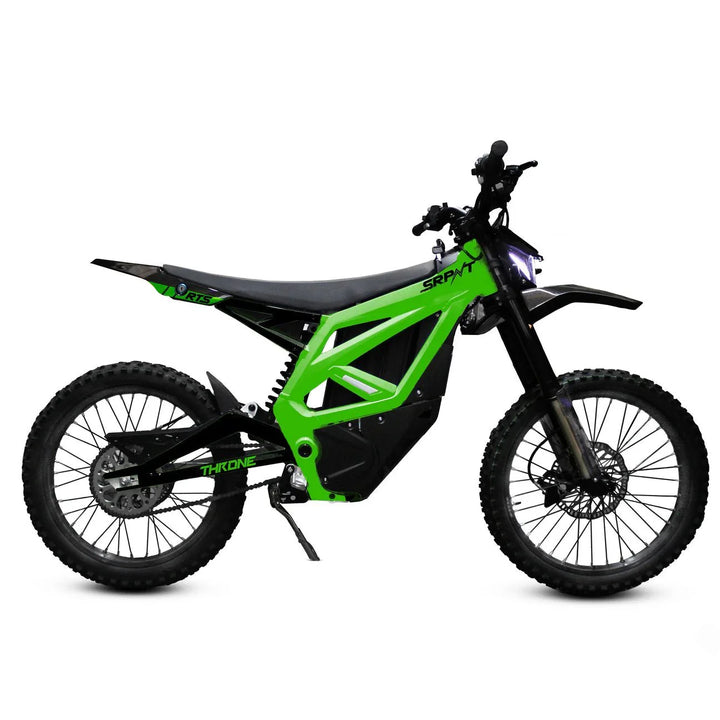

The THRONE CYCLES THRONE SRPNT Moto eBike is a 0ff-road tire electric bike with a powerful 10000 W motor and a long distance 72v 40 ah battery. With 19 inches 0ff-road tires, Single Speeds and Hydraulic brakes this Electric Dirt Bike is a , with a top speed up to 55-60 mph. An optimal distance of 60+ miles and charge time of 3-4 hrs. This THRONE CYCLES THRONE SRPNT Moto electric bike is 160lbs with a maximum cargo weight of 320lbs. The THRONE CYCLES THRONE SRPNT comes in the following colors: White,Monster Green,Orange Crush,Concrete Grey,Black Strike,,.
| MOTOR |
| Motor Type: |
PMSM |
| Mounting Position: |
Mid |
| Weight / Motor External Diameter: |
9.55kg / 155mm |
| Motor Axial Length: |
130mm |
| Peak Efficiency: |
98% |
| Cooling Method: |
Air-Cooled |
| CONTROLLER |
| Controller Type: |
FOC |
| Dimensions: |
160mm x 142mm x 79mm |
| Peak Efficiency: |
98.50% |
| Power Modes: |
Eco, High, and Sport |
| MOTOR POWER SYSTEM |
| Rated Voltage: |
72V (DC) |
| Rated Torque / Peak Torque: |
95115Nm |
| Motor Shaft Output Torque @ 1000RPM: |
460Nm |
| Rated Rotation Speed: |
5400rpm |
| Peak Efficiency: |
97% |
| Range of Efficiency (≥80): |
3Nm - 45Nm |
| TRANSMISSION |
| Gear Ratio: |
13:51 |
| Transmission: |
Motorcycle Chain & 420 Drive Chain |
| Model: |
German Continental Brand, 8M CXA |
| ELECTRICAL COMPONENTS |
| Horn: |
CQC |
| Battery: |
72V 40AH Lithium Battery with 176 LG Cells |
| Battery Life Time: |
500 Cycles |
| Battery Charge Level: |
Integrated Battery LCD Display |
| Charger: |
9A |
| Charging Time: |
3.5 Hours |
| USB Connection: |
Type C |

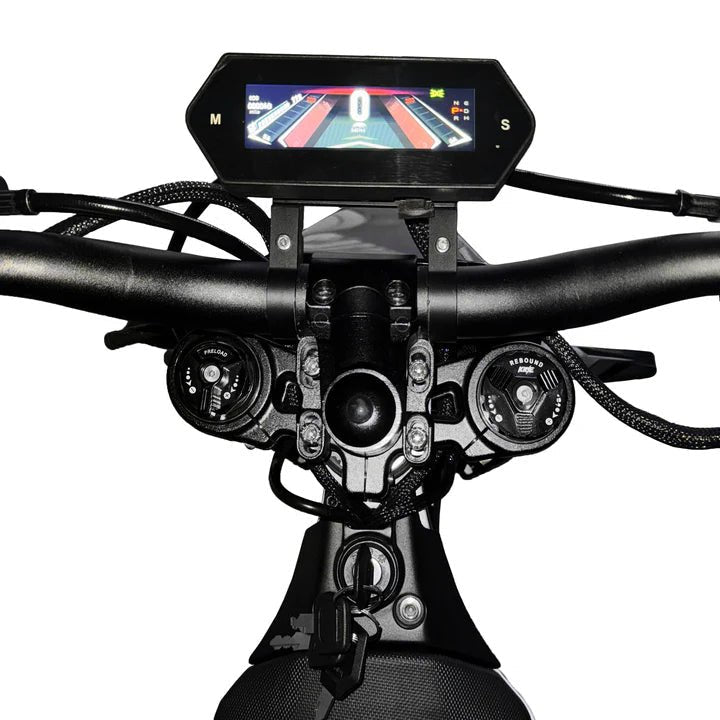

| Speedometer: |
TFT |

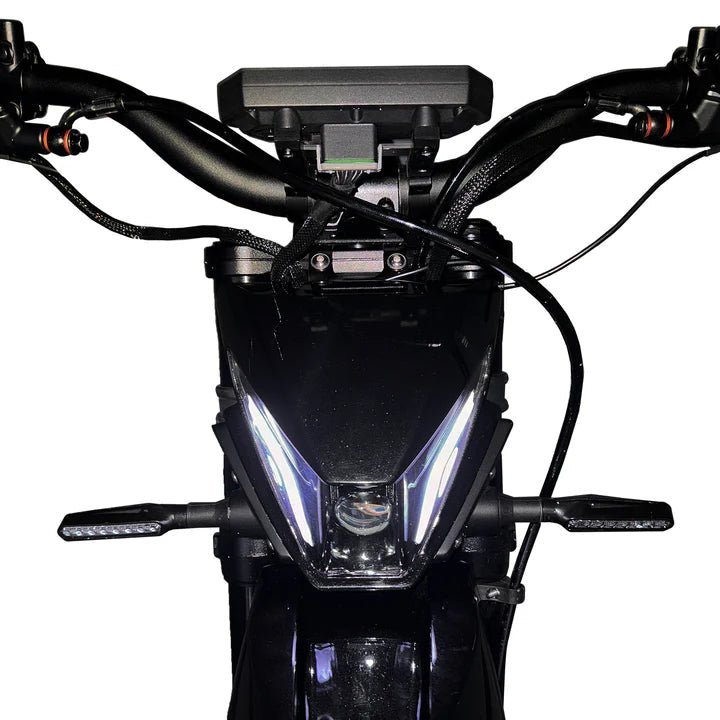

| LED Headlight & Rear Light: |
Yes |

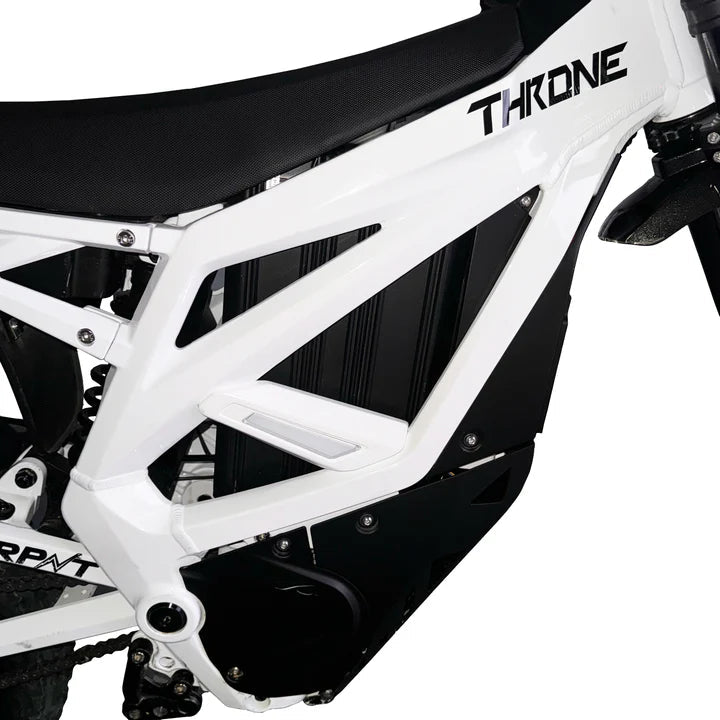

| FRAME DETAILS |
| Chassis - Swing Arm Material: |
No.6061 T4&T6 Aluminum |
| Chassis Construction Method: |
Forged by 3000 Tons of Pressure |
| Chassis Surface & Color Processing: |
Baked Paint |
| Front Suspension: |
Inverted Suspension Fork with 200mm Travel |
| Rear Shock Absorber: |
KKE Suspension Link System |
| Wheel Type & Size: |
Front/Rear :1.4-19 , 1.6-19 Alloy Hubs |
| DIMENSIONS |
| Ground Clearance: |
270mm |
| Wheelbase: |
1250mm |
| Seat Height: |
85cm |
| Vehicle Dimensions: |
1880mmX805x1130mm |
| DRIVE |
| Top Speed: |
55-60 mph |
| Net Weight |
160lb |
| Rear Sprocket |
51T |
| Side Stand |
Yes with Kill Switch |
| Battery Usage |
600 Uses |
| Carry Capacity |
320lb |
